1.1 Connect AirHub to DJI Pilot 2 Cloud API

To establish the connection between the AirHub platform and the DJI Pilot 2 Cloud API, please follow the steps below. Completing this step first is crucial, as it ensures your drone and battery are automatically added to your workspace.

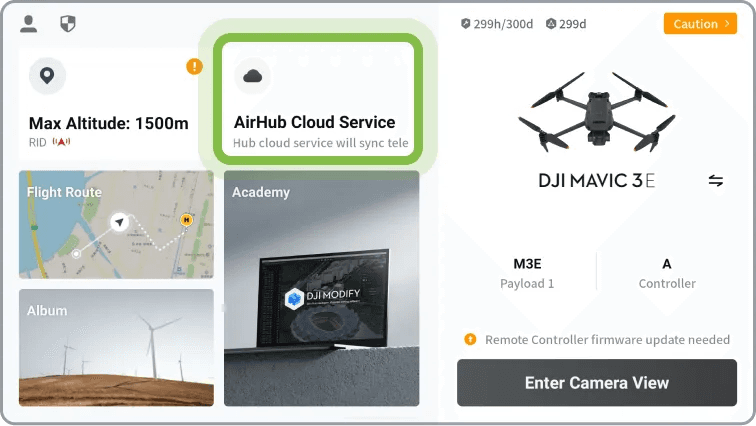

1. Open the DJI Pilot 2 app and press the Cloud Service tile.

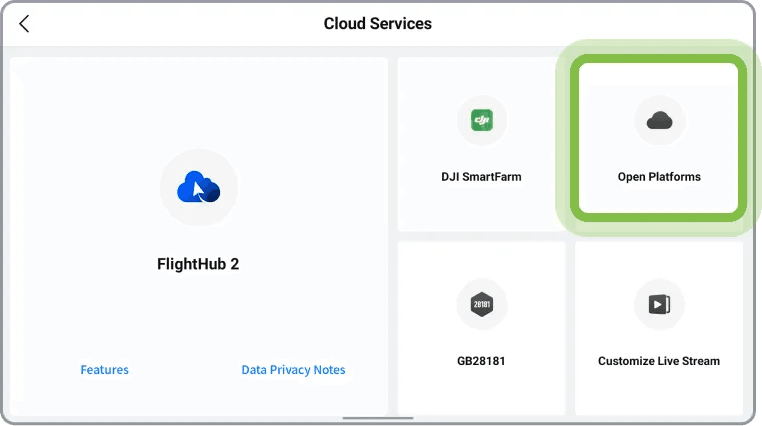

2. Press the Open Platform tile.

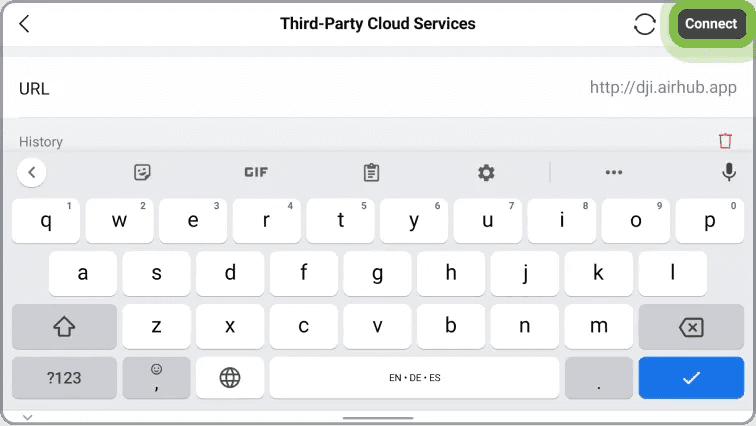

3. Enter the URL: https://dji.airhub.app and press Connect.

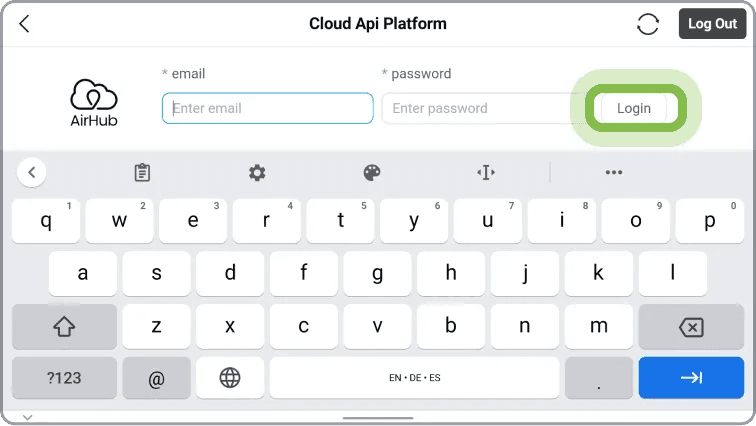

4. Log in with your AirHub credentials.

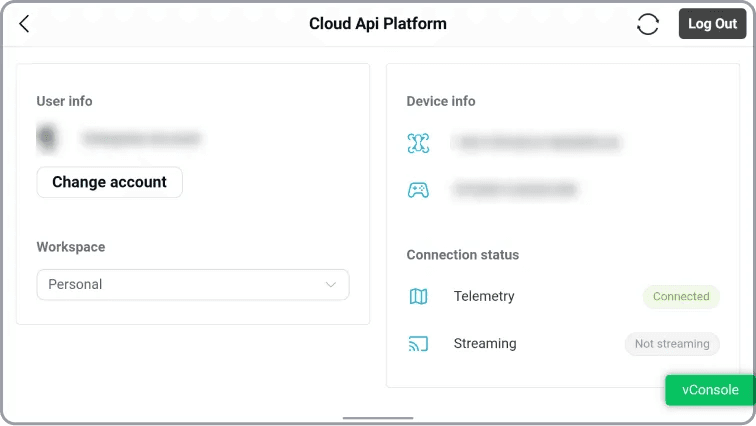

5. Once logged in, you’ll see a page with your account details, the workspace you’re in, information about the drone and controller, and the livestream status.



1.2 Choose Workspace

Selecting the right workspace is essential for successful mission execution, as it directly impacts livestreaming and telemetry. Follow the steps below:

1. Open the DJI Pilot 2 app and press the AirHub Cloud Service tile.

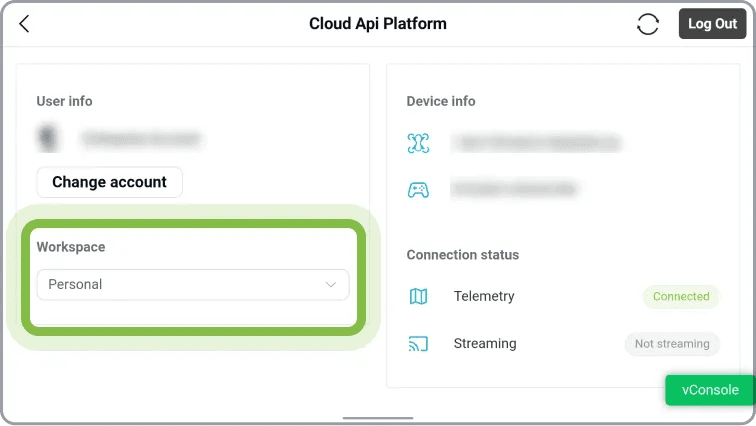

2. Press the Workspace dropdown.

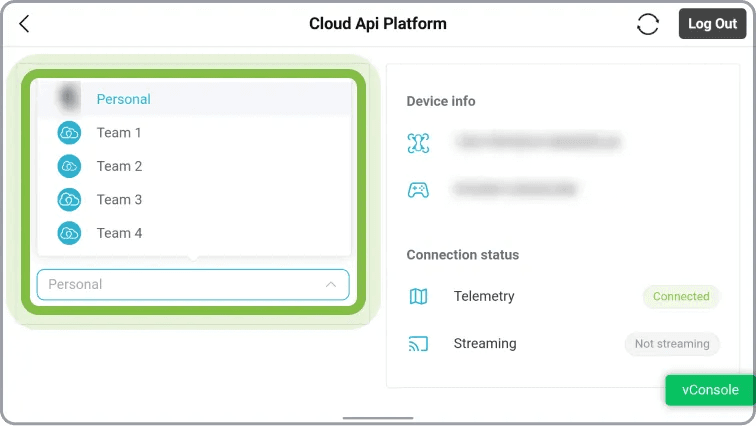

3. Select the correct workspace from the list.



1.3 Executing the Mission

To track, livestream, and send telemetry to the AirHub Drone Operations Center while using the DJI Pilot 2 app, follow these steps:

⚠️ Important: Make sure you have selected the same workspace for both the DJI Pilot 2 Cloud Service and the AirHub Ground Control app.

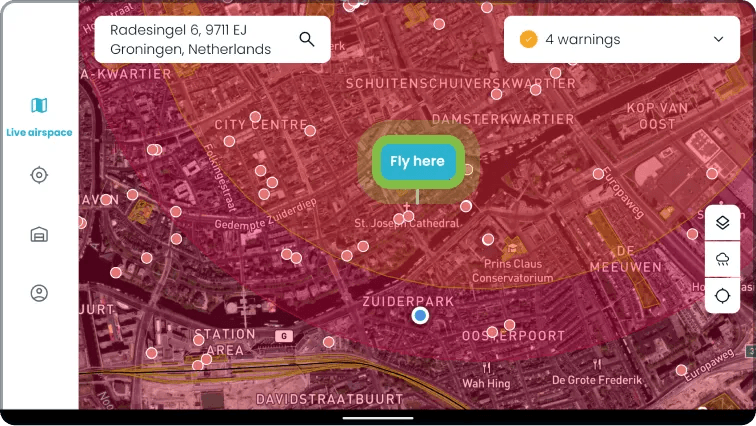

1. Create a mission by pressing Fly Here.

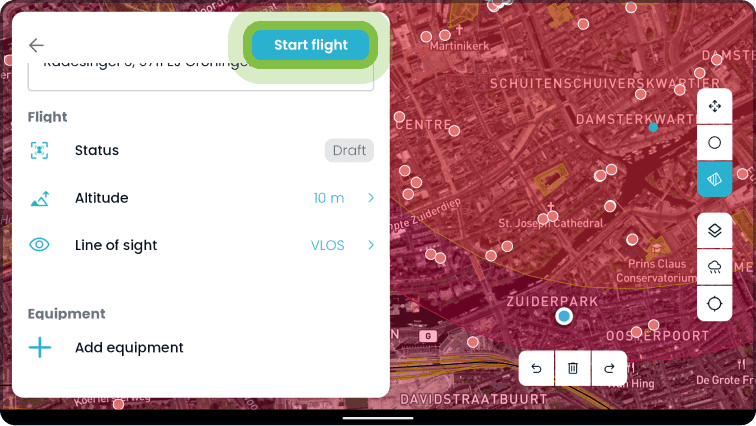

2. Press Start Flight.



   Note: The drone and battery will be added automatically.

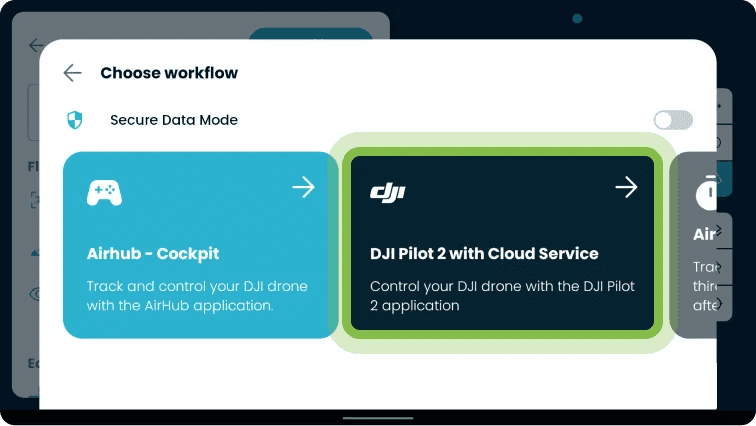

3. Choose AirHub – DJI Pilot 2 with Cloud Service.



   Note: The DJI Cloud connection does not work with Secure Data Mode enabled.

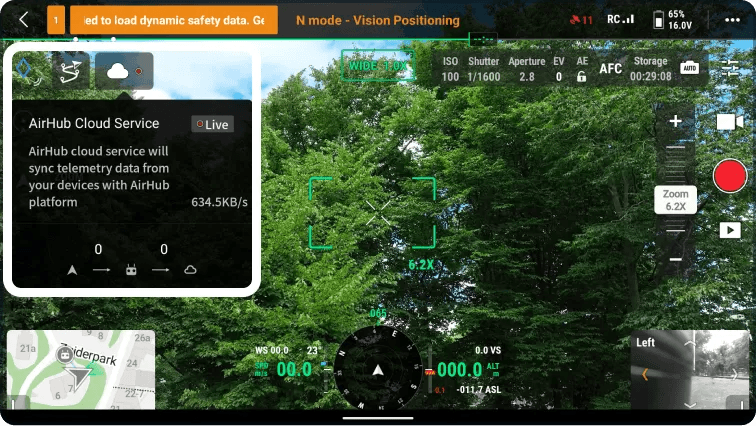

4. Check the connection status by looking at the cloud icon in the top left corner of the camera view in DJI Pilot 2.



   Note: Remember to go back to the AirHub app to make sure the flight is logged!
